Electronics Series A - Basic
Batteries Lipo:
The Series A.1 Supports
A 4s (15v) 3000-4000 maph
A 3s (12v) 4000-5000 maph
Batteries LiIon:
The Series A.1 Supports
A 4s (15v) 4000-5000 maph
A 3s (12v) 5000-6000 maph
When purchasing a battery, make sure that it does not exceed the 30mm height limit inside of the bay.
Power Plant:
Flash Hobby
2826 EVO 1100kv
Servos:
APC 9x6 Thin Electric
Any 9g Standard Servo size

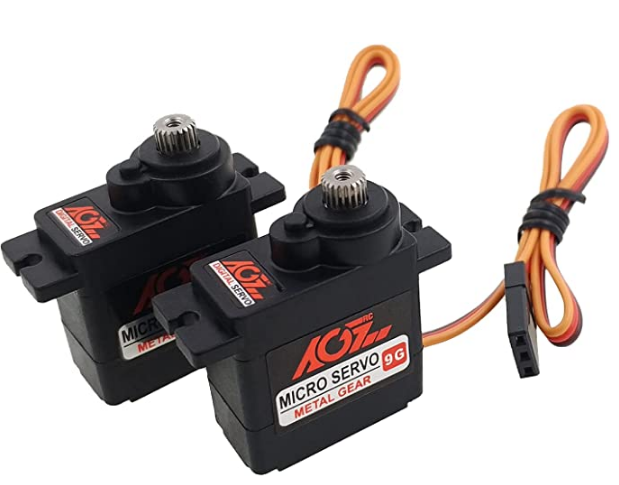

AGFRC 2 PCS
9g Metal Gear Digital Servo
Carbon Fiber Rods
Needs x2 10mm x 8mm x 420mm Carbon tubes
Needs x1 7mm x 5mm x 1000mm carbon tube (To be split in half).
Needs x1 small 2mm section of carbon rod for hinge (can be substituted with small piece of filament)
Needs x1 4mm x 2mm x 1000mm Carbon tube (To be split in half).
Push Rods & Linkages
Small 1.3mm -1.7mm metal pushrod linkages
Thin 1.2-1.3mm steel pushrod
Electronic Speed Controller:
Any 30 amp Brushless ESC with a UBEC if you don’t have a Flight Controller or Separate BEC
RC Electric Parts
30 Amp Brushless ESC
Threaded Inserts & Screws
5mm M3 threaded brass inserts
M3 Socket head cap screws
Receiver
For Basic Line of Sight flying the R88 RadioMaster Receiver excels. With 8 Channels and a strong signal, this receiver is very well priced.
R88 8 Channel Receiver
6x3 Rare Earth Magnets
Magnets
Electronics Series A - UAV
Flight Controller
Matek F411 WTE is a small lightweight 6PWM Flight controller capable of running INAV Firmware.
Matek F405 WTE is a 14 PWM output Flight controller capable of running INAV and ArduPilot Firmware.
GPS Module
A GPS Module is essential for autonomous flight. The BN220 by Beitian is a cheap but reliable GPS .
Video Transmitter
A 5.8 ghz VTX is a good starting point for FPV. The SoloGood 5.8 ghz 2W VTX is a powerful yet affordable option.
Receiver and Transmitter Module
The ELRS ES900TX & RX is a 900mhz Cheap alternative to crossfire. Its offers great range and link quality for a great price.
FPV Camera
The Phoenix RunCam 2 is a good affordable option with high quality video.
This is a collection of hardware tested and proven to work reliably with this model. Feel free to substitute or add hardware depending on your purposes. Our purpose at WingWorx is to create a platform catered to those who enjoy tinkering and experimentation while also being a good choice for those who seek a simple step into the world of DIY model aviation.
